Architecting Agentic AI in Heavy Capital Projects: Dual-Brain Patterns, Enterprise AI Standards, and C-Suite Strategic Roadmaps for EPC

Executive Summary for the C-Suite

Heavy capital industries—such as Engineering, Procurement, and Construction (EPC), Oil & Gas, and Large-Scale Infrastructure—operate in a unique physical-digital continuum. Unlike purely digital software environments where transactional errors are instantly reversible via rollbacks, capital projects involve high-stakes physical execution. In this domain, an algorithmic error or unconstrained model hallucination does not just trigger a failed database write; it can lead to structural steel misalignments, catastrophic pressure vessel failures, multi-billion-dollar supply chain standstills, or regulatory stop-work orders during plant construction.

For executive leadership entering this space, the core challenge is mastering the immense complexity of physical execution without inheriting unpredictable AI risks. This article outlines the structural realities of the EPC industry, details three high-ROI use cases complete with dedicated architectural workflows, establishes the Golden Rule of Dual-Brain Architecture, integrates open-source symbolic reasoning engines and industrial ontologies, and illustrates how cognitive order adapts across healthcare, finance, legal, and heavy industrial domains.

1. The Golden Rule of Dual-Brain AI Architecture

Across enterprise domains, deploying production-grade AI safely boils down to a fundamental operational principle:

The Golden Rule:

1. Models Extract and Synthesize Facts. (Probabilistic cognitive processing parses context).

2. Rules Decide and Execute Invariants. (Deterministic engines enforce boundaries and safety code).

3. People Oversee Exceptions. (Human-in-the-Loop workflows resolve material risk).

4. GovOps Governs the Runtime. (Action-binding, circuit breakers, and audit trails ensure compliance).

Note on terminology: this article maps "System 1" to the deterministic/schema engine (fast execution) and "System 2" to the LLM/GraphRAG reasoning layer (slower, deliberative extraction) — the inverse of how some neuro-symbolic literature uses these terms (LLM = System 1, symbolic rules = System 2). Both conventions exist; we fix ours here so the rest of the article is unambiguous.

Ultimately, how System 1 (Deterministic Judgment Sinks / Fast Schema Engines) and System 2 (Reasoning / Agentic GraphRAG Extraction) interact depends entirely on the structural topology of the input data, as mapped across enterprise use cases below.

2. Domain & Workflow Architectural Taxonomy: Cognitive Flow Comparison

To understand how enterprise AI patterns scale, C-suite executives must recognize that cognitive sequence is dictated by Input Topology (Data Structure) rather than industry nameplates alone. Enterprise workflows fall into two primary structural archetypes:

1. Structured Data Flows (System 1 ⇒ System 2): When raw inputs arrive in structured or schema-valid formats (e.g., real-time transactional feeds, EHR bedside vitals, account IDs), fast deterministic rules triage data upfront before escalating anomalies to System 2 reasoning.

2. Unstructured Artifact Flows (System 2 ⇒ System 1): When inputs arrive as unstructured prose, engineering drawings, or multi-page documents (e.g., contracts, P&IDs, clinical notes, corporate credit memos), System 2 must parse and ground facts into structured ontologies first, allowing System 1 to enforce downstream safety and compliance invariants.

Cognitive Flow Matrix Across Enterprise Workflows

See terminology note in "1. The Golden Rule of Dual-Brain AI Architecture"

Industry / Workflow	Primary Input Topology	Cognitive Order	Operational Rationale
Financial Services: Retail Banking & Payments	Structured Ledgers, ISO 20022 Messages, Account IDs	System 1 ⇒System 2	Real-time rules check balance caps, velocity, and fraud thresholds upfront. Only unclassified anomalies trigger System 2 agent investigation.
Financial Services: Commercial Underwriting & AML	Unstructured Loan Memos, Auditor Footnotes, Corporate Filings	System 2 ⇒ System 1	Qualitative corporate financial packages must be semantically parsed by System 2 into structured financial ratios before System 1 risk models evaluate lending limits.
Healthcare: Bedside Care & Vitals Triage	Semi-Structured Vitals, Standard ICD-10 Codes	System 1 ⇒System 2	Fast rule engines check dosage limits and lethal drug interactions first. Complex diagnostic synthesis escalates to System 2.
Healthcare: Unstructured Clinical Notes & EHR	Free-text Physician Notes, Scanned Discharge Summaries	System 2 ⇒ System 1	Unstructured clinical narratives are extracted by System 2 into structured HL7 FHIR payloads before System 1 rule engines enforce clinical safety protocols.
Legal AI: Contract Analysis & Litigation	Unstructured MSAs, Court Filings, Regulatory Texts	System 2 ⇒System 1	Contractual prose cannot be checked by rules directly. System 2 extracts structured legal facts (JSON-LD), then System 1 evaluates compliance against corporate playbooks.
Heavy Industrial (EPC): Engineering & Procurement	Unstructured P&ID Schematics, CAD Drawings, Vendor Bids	System 2 ⇒System 1	Complex engineering artifacts must be converted into structured candidate payloads (pressure, material, tags) by System 2 before System 1 enforces ASME B31.3 physical safety invariants.

3. Understanding the Industry: What is EPC and Where Does AI Fit?

EPC (Engineering, Procurement, and Construction) is the standard contracting model used for executing massive capital expenditure (CapEx) projects—such as building chemical processing plants, liquefied natural gas (LNG) terminals, power grids, and offshore drilling platforms.

The lifecycle of an EPC project spans sequential phases: Define, Engineer, Plan & Source, Build, Complete, and Operate (terminology varies by firm — some use FEL/FEED-stage naming or the simpler EPCC breakdown; the phases below map consistently regardless of naming convention). Across these phases, organizations face systemic friction:

• The Information Silo Problem: Engineering design specs (crafted in CAD and P&IDs) live separately from procurement databases (SAP/ERP), which are disconnected from field construction tracking and commissioning punch lists.

• The Unstructured Data Deluge: Projects generate millions of pages of complex engineering standards, equipment datasheets, vendor proposals, and regulatory codes. Human review teams face severe decision fatigue.

• The Cost of Cascade Errors: A minor oversight during the Engineer phase (e.g., an incorrect pipe material grade) cascades silently through Procurement and Build, only to be discovered during Complete (Commissioning), resulting in months of schedule delays and millions in rework costs.

4. EPC Core Use Cases and Operational Architectures

Applying the System 2 Extraction  --> System 1 Deterministic Verification pattern directly addresses three primary high-ROI bottlenecks across the EPC lifecycle:

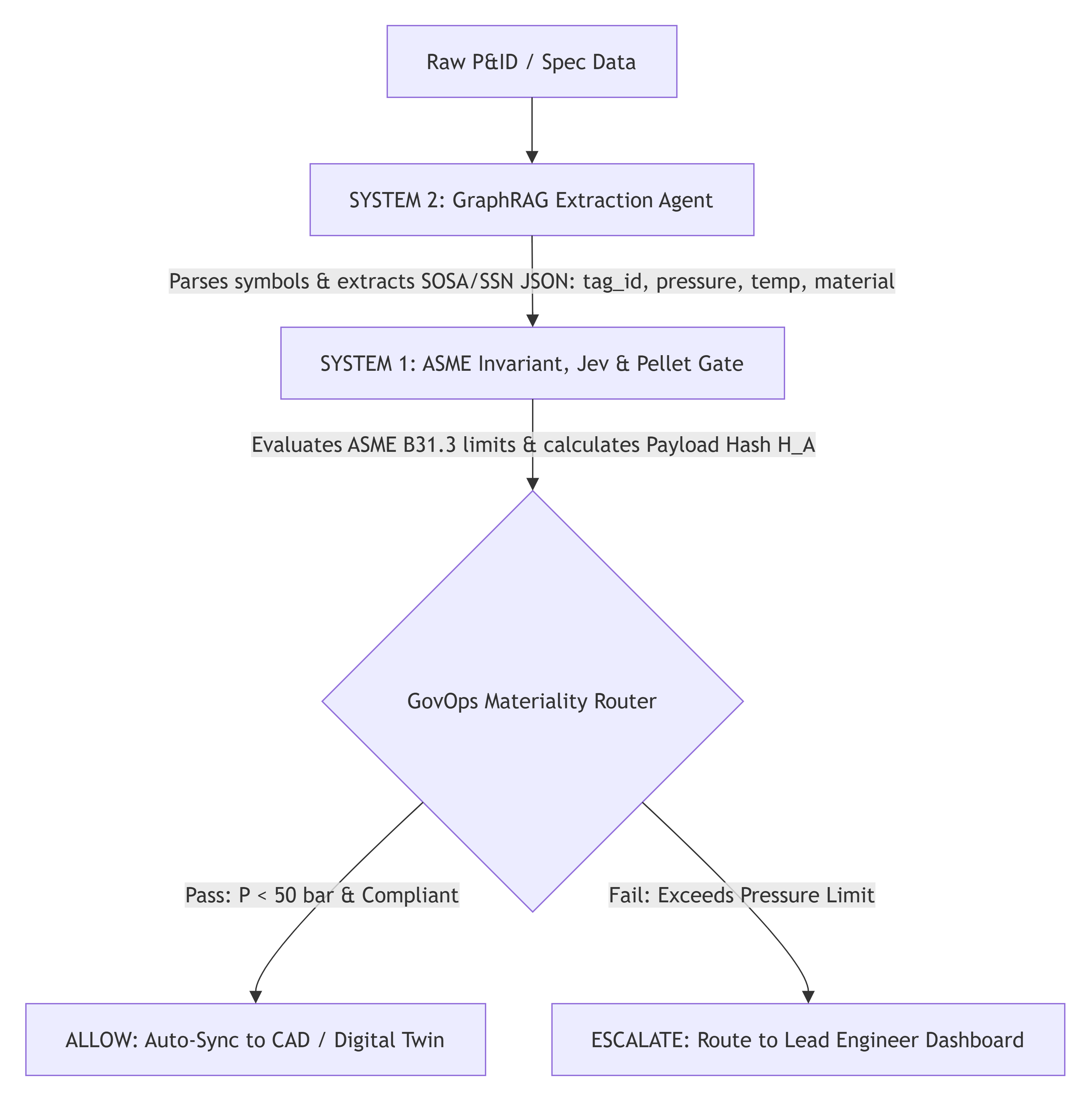

Use Case 1: Autonomous Engineering Deliverable Validation (Phase: Engineer)

• The Problem: Reviewing Piping and Instrumentation Diagrams (P&IDs) and line lists against strict mechanical codes (such as ASME B31.3 Process Piping) traditionally takes weeks of manual senior engineering time.

• The Solution & Workflow: System 2 extracts drawing tags, operating pressures, temperatures, and material grades into a structured payload grounded in industrial asset ontologies such as ISO 15926 or CFIHOS (the same standards used later in Use Case 3 for asset handover) — rather than W3C SOSA/SSN, which is designed for live sensor/observation data, not static engineering-drawing metadata. System 1 evaluates extracted values against deterministic engineering invariant tables via a schema-guaranteed rules/validation service or symbolic reasoners (like Owlready2 / Pellet)..

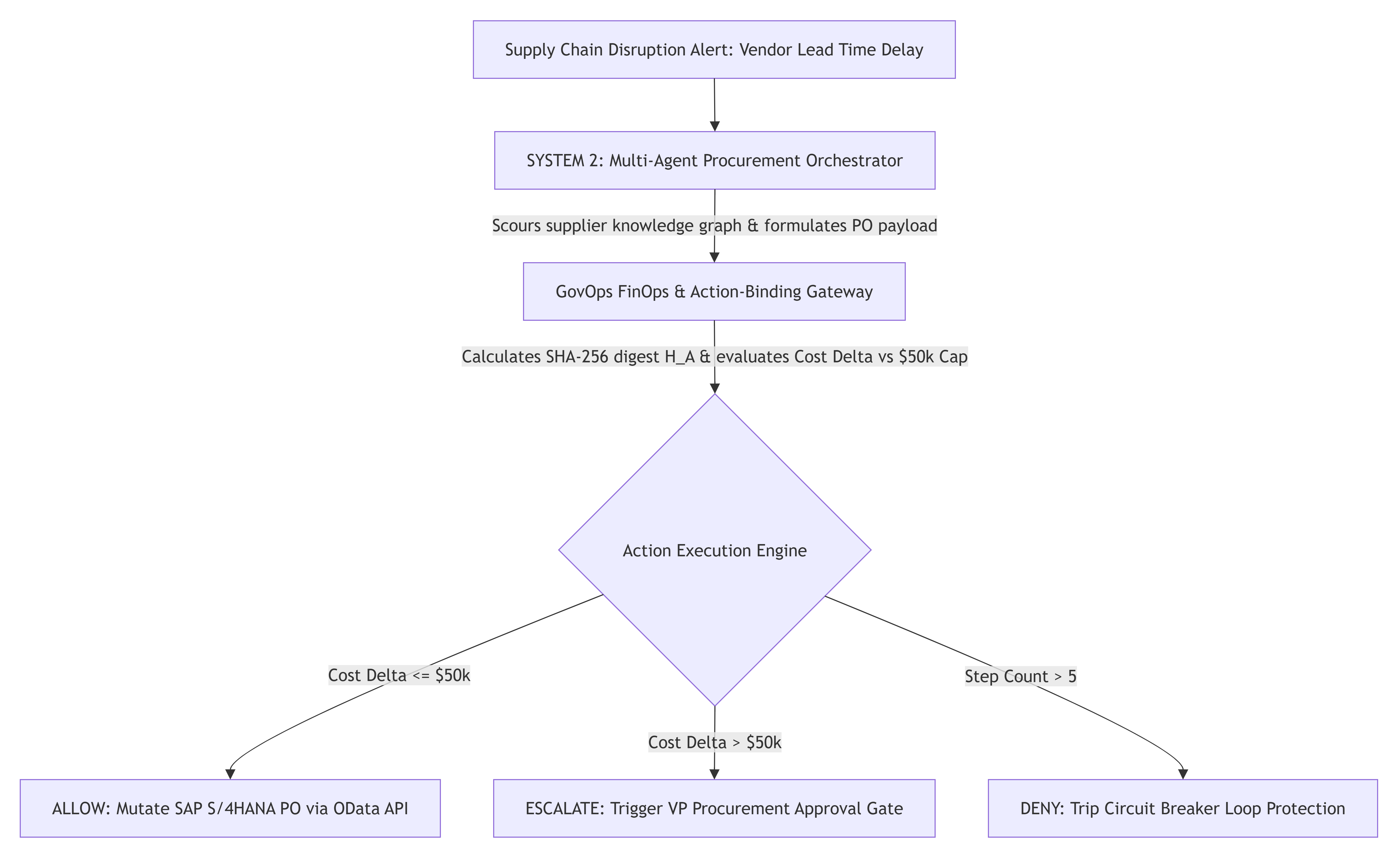

Use Case 2: Autonomous Supply Chain PO Re-Routing & Spend Gate (Phase: Plan & Source)

• The Problem: Global supply chain disruptions frequently cause delivery delays on long-lead equipment (e.g., specialized pumps or valves). Finding alternative vendors manually and recalculating project critical paths causes costly bottlenecks.

• The Solution & Workflow: Multi-agent System 2 reasoning identifies alternative suppliers from enterprise knowledge graphs. System 1 and the GovOps control plane (using PyReason / Durable Rules) evaluate cost deltas against corporate budget caps ($50,000 threshold).

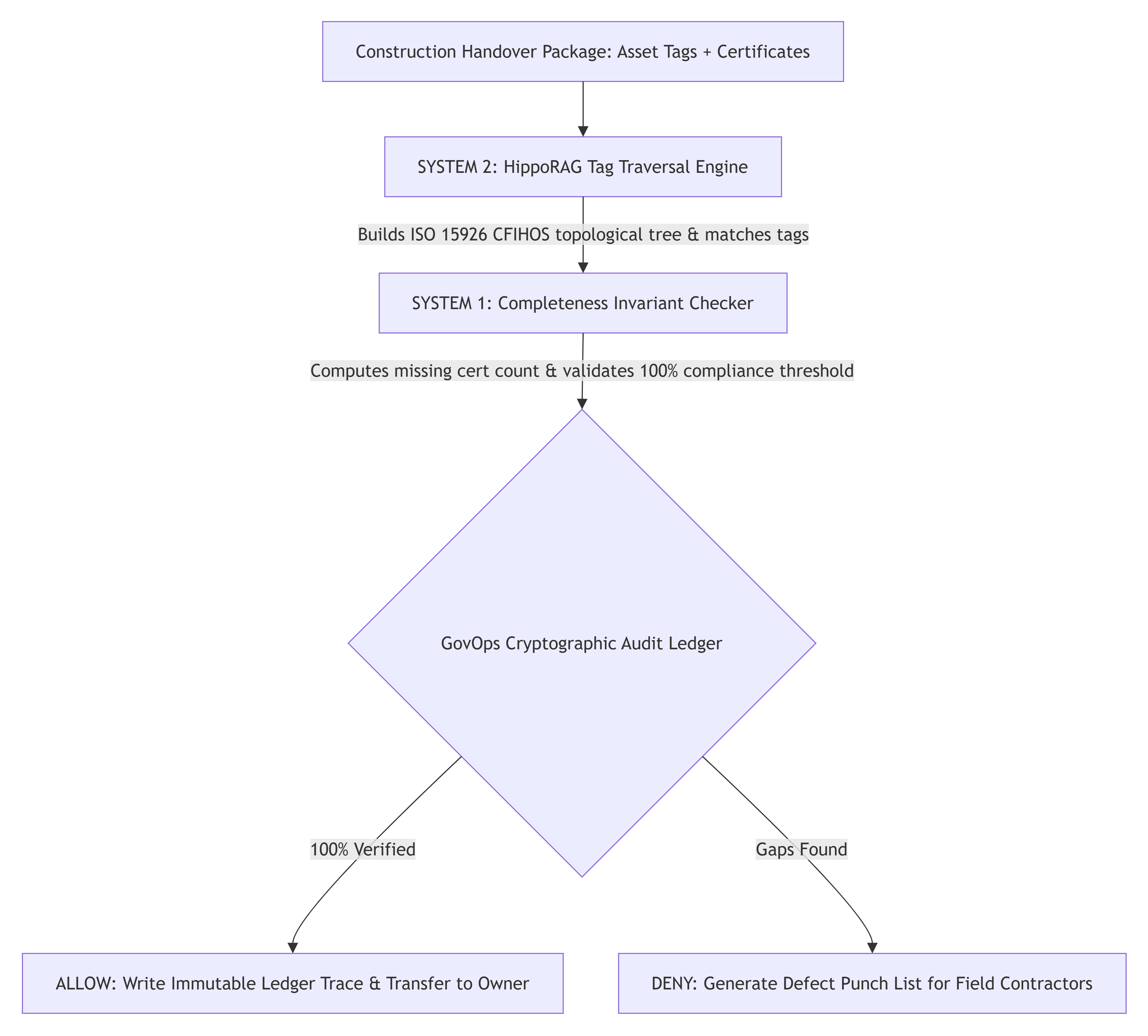

Use Case 3: Asset Completion & Handover Verification (Phase: Complete)

• The Problem: Handing over a plant asset to operations requires verifying that 100% of installed equipment tags match mandatory commissioning certificates, quality punch lists, and regulatory compliance records. Missing documents stall plant startup.

• The Solution & Workflow: System 2 GraphRAG traverses asset dependency trees mapped to the ISO 15926 / CFIHOS ontology, cross-referencing physical tags against uploaded certificates. System 1 evaluates completeness thresholds to generate immutable audit ledgers.

5. Production Architecture: The Neuro-Symbolic Dual-Brain & GovOps Pattern

To protect the enterprise against model hallucination, operational drift, and unauthorized agentic actions, we separate probabilistic reasoning from deterministic execution using a neuro-symbolic architecture:

System 2 (Reasoning & Intent Generation)

Powered by multi-agent state machines (e.g., LangGraph) and Hybrid GraphRAG, System 2 handles open-ended document parsing, semantic search, and intent formulation. It acts as the "cognitive engine" but possesses zero direct database mutation rights.

System 1 (Deterministic Judgment, Ontologies & Decision Sinks)

System 1 replaces slow, expensive text generation with high-speed, schema-guaranteed classification engines and symbolic reasoners:

• Schema-guaranteed decision-classification service: A rules/validation layer (e.g. JSON-Schema or Pydantic-validated microservice) that provides fast, schema-guaranteed decision classification.

• Industrial Ontologies (CFIHOS / ISO 15926 & W3C SOSA): Standardizes asset tags, equipment classes, and line properties to ensure strict domain alignment.

• Open-Source Symbolic Reasoners (Owlready2 / Pellet / PyReason): Executes description logic checks and RETE-style forward-chaining rules over extracted knowledge graphs, instantly flagging physical code violations as formal logical inconsistencies with 0% hallucination risk.

Step-by-step data flow explanation

1. Ingestion — Unstructured Engineering State (PDF / CAD / PO Alert) enters the pipeline and is handed to System 2.

2. System 2 — Reasoning / Cognitive Extraction (runs in sequence, left→right in the diagram):

   • LLM / Multi-Agent State Machines (LangGraph) — orchestrates the reasoning steps, decides what to extract/retrieve.

   • Hybrid GraphRAG Knowledge Retrieval — pulls supporting context from a knowledge graph + vector store (e.g. related specs, prior POs, vendor history).

   • Ontological Fact Extractor (Triplets / JSON-LD) — converts the raw document + retrieved context into structured facts in a standard ontology format.

3. Neuro-Symbolic Bridge — the single handoff point takes System 2's extracted facts and normalizes them into the shared ontology/state schema that System 1 is written against. This is the architectural "firewall" — System 2 never talks to System 1 in free text, only in this standardized state.

4. System 1 — Deterministic Judgment (parallel engines, not sequential) — the bridge fans out to multiple interchangeable deterministic backends (you pick one per deployment, not all four at once):

• Mock/deterministic fallback engine (local dev/testing)

• Symbolic reasoners (Owlready2 / Pellet / HermiT)

• RETE forward-chaining / Durable Rules

• A fast schema-guaranteed classification engine (renamed from "TypeSafe Jev API" per the earlier fact-check — still unverified as a real product)

5. GovOps Control Plane — runs in parallel, independently of System 1's reasoning:

• Policy & Governance Engine defines what's allowed.

• Materiality Router classifies the pending action as ALLOW / ESCALATE / DENY based on risk/value thresholds.

• Cryptographic Audit computes Payload Hash H_A — a hash of the authorized intent, taken the moment governance approves it.

• The dotted "Governance Rules" edge feeds these policies into the Neuro-Symbolic Bridge, so System 1's rule engines are configured by GovOps, not hardcoded.

The GovOps Control Plane

Sitting above both brains, the control plane enforces enterprise risk management controls:

1. Risk Materiality Tiering: Automatically routes actions into ALLOW (autonomous execution), ESCALATE (Human-in-the-Loop check), or DENY envelopes based on financial and safety impact.

2. Action-Binding & Cryptographic Hashing: Computes SHA-256 canonical hashes H(A)H(A) of execution intents (i.e., a hash of the serialized tool name + parameters + target system) prior to tool invocation and compares it against the hash authorized at the reasoning step — preventing loop-jacking or parameter tampering between intent generation and execution.

3. Loop Circuit Breakers: Monitors agent step counts and token loops, instantly tripping fallback routines if an agent stalls.

6. Strategic Imperatives for C-Suite Execution

For leadership adopting this architecture in industrial domains, three strategic rules govern successful execution:

• De-risk via Separation: Never grant generative LLMs direct write access to enterprise ERP or SCADA systems. Always route agentic intent through a schema-guaranteed System 1 judgment gate and symbolic rule engine — direct LLM-to-system write access removes the deterministic checkpoint that catches hallucinated parameters before they reach physical or financial systems.

• Mandate Provable Auditability: Ensure every automated decision generates cryptographic audit trails and structured OpenTelemetry traces, satisfying corporate risk committees and external auditors — without this, a disputed automated decision (e.g. a mis-routed PO or a flagged-as-compliant asset handover) cannot be reconstructed or defended after the fact..

• Embrace a Zero-Cost Development Posture: Build applications using modular provider patterns that allow seamless fallback between local open-source testing environments (MockSystem1Provider / Owlready2) and high-performance production APIs — this lets engineering teams validate the full decision pipeline offline before committing budget to a paid production service..

By fusing rigorous risk governance with industrial engineering workflows, organizations can capture the transformative velocity of Agentic AI while maintaining absolute operational safety and compliance.
